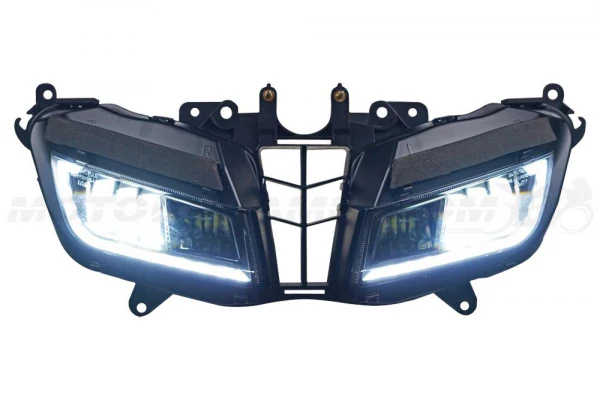

2013-2026 Honda CBR600RR Full LED Projection Head Light Assembly with DRL
HomeStore

2013-2026 Honda CBR600RR Full LED Projection Head Light Assembly with DRL

2013-2026 Honda CBR600RR Full LED Projection Head Light Assembly with DRL

2013-2026 Honda CBR600RR Full LED Projection Head Light Assembly with DRL by Motodynamic

Features:

• 6 LED projector low beams, 2 LED reflective high beams and 2 LED DRL light bars
• 100% direct bolt-on and plug and play with included subharness, no modification needed
• SAE/DOT compliant for use in all 50 states - compliant to FMVSS108
• Installation instructions included, knowledgeable installation highly recommended
• Warranty: 1 Year

Compatible with:
Honda CBR600RR 2013-2025 (5th Gen - USA and similar)

Specifications:
• Dimensions: 19" x 7" x 8" (Width x Height x Depth)
• Weight: 5.10 lbs (2.31 kgs)

Materials:
• Lens: PC
• Rear housing: PP
• LED heatsink: Aluminium

LED Specs:

Low Beam (Projection):
• Wattage: 28.2W
• Current Draw: 2.18A @13.8V
• Lumens: 3500
• Colour Temperature: 6500K +/- 3% Tolerance

High Beam (Reflective - Low beams remain on):
• Wattage: 31W
• Current Draw: 2.62A @ 13.8V
• Lumens: 3000
• Colour Temperature: 6100K +/- 3% Tolerance

Daytime Running Light (Light Bars):

• Wattage: 8.6W
• Current Draw: 0.66A @ 13.8V
• Colour Temperature: 6000K +/- 3% Tolerance

>>>DOWNLOAD QUICK INSTALLATION INSTRUCTIONS HERE<<<


Note: Motodynamic headlights are currently sent with Fedex, with an arrival ETA of 5-6 business days in AU. Fedex will require signature on delivery, and does not allow for parcel lockers. If you use a parcel locker address, we'll get in touch with you to sort out another solution!
